Gauge Vacuum And Absolute Pressure. Absolute vs gauge pressure measurement. Vacuum pressures unit conversions chart (absolute) perfect vacuum or 100% vacuum is a zero reference pressure.

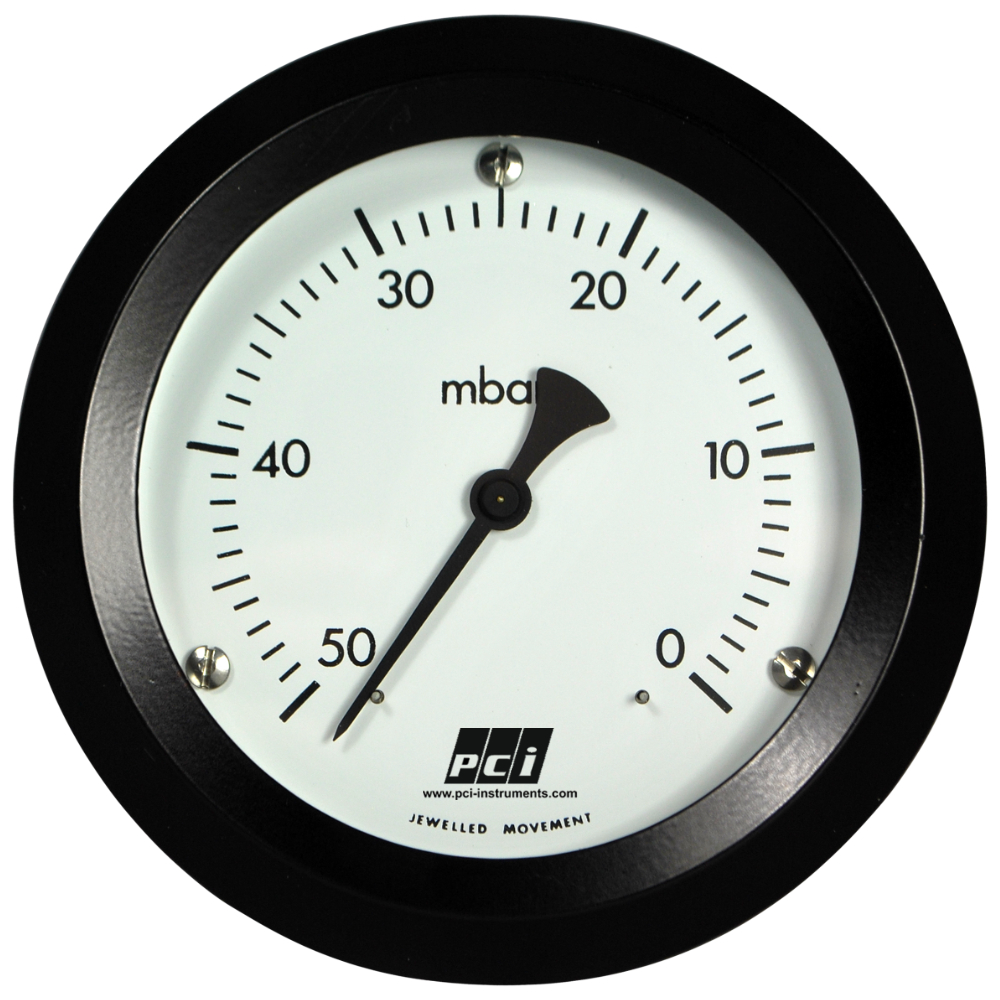

Absolute Pressure Gauges from general-gauges.com

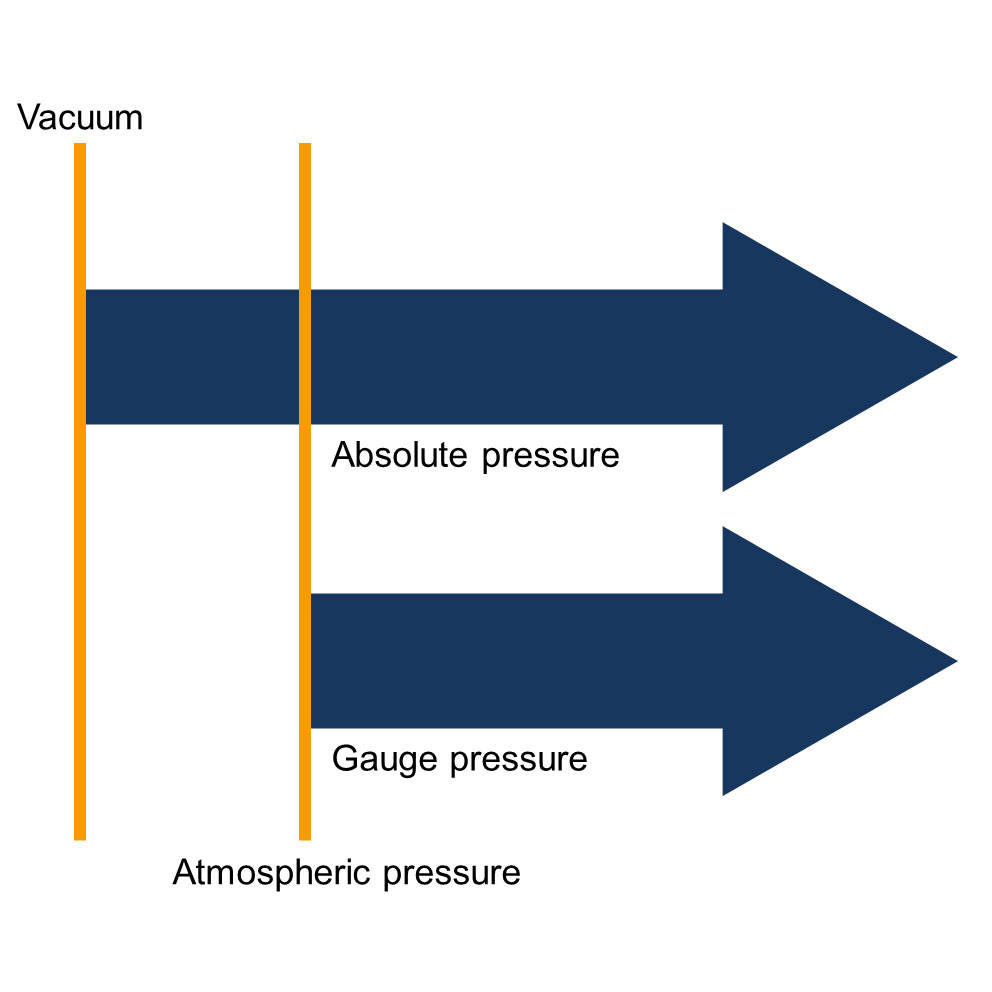

Mathematically, we could say that absolute pressure is always a higher value than gauge pressure, by exactly one atmosphere. In other words, how much above or. A vacuum pressure can always be measured and defined as an absolute pressure, but an absolute pressure can also be used to define pressures outside the vacuum range.
For A Fluid At Rest, The Pressure At A Given Point Is The Same In All Directions.
In other words, how much above or below is the pressure with respect to the atmospheric pressure. Now we will understand here the concept of absolute pressure, gauge pressure, atmospheric pressure and vacuum pressure with the help of this post. Absolute pressure is always referenced to a perfect vacuum so the reference is fixed, and gauge pressure is always measured relative to atmospheric pressure so the reference changes.
The Instrument Used To Measure Vacuum Pressure Is Known As Vacuum Gauge.
If the gauge pressure value is negative, it is called underpressure or partial vacuum. Because it is referenced against an absolute zero pressure, psia is always expressed as a positive value. It is expressed with ‘a’ like kpa (a) or psia.
If The Measured Pressure Is Higher Than The Standard Atmospheric Pressure And Is Equal To The Absolute Pressure Minus Atmospheric Pressure.
Any pressure measured relative to a full vacuum, whether above or below the surrounding ambient air pressure, is called an absolute pressure. It is that pressure of a fluid, which is measured with respect to absolute zero pressure as the reference. An absolute pressure measurement of 5 psia simply means that the system is operating 5 psi above the pressure of absolute vacuum.
It Is The Pressure That Is Measured Relative To A.
Normal vacuum pressure gauges measure against the atmospheric pressure, while absolute pressure gauges measure with reference to the absolute zero point. Pressure on a fluid will be measured with reference to some datum. However, this pressure changes with the weather and the height above sea level.
An Absolute Pressure Measurement Measures.
In practice, a perfect vacuum is impossible to obtain. The actual pressure at a given position is called the absolute pressure, and it is measured relative to absolute vacuum. As a consequence, absolute pressure is equal to the gauge pressure plus the atmospheric pressure.
